Product Introduction
JZ-205 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including B-osch, D-elphi, D-enso, Si-emens, C-aterpillar and so on. The experimental data are complete.
Functions Description
1.With electronic measuring system
2.Accurate data Multiple protection
3.Prepositioned precise filter for sensor
4.Intelligent algorithm Automatic calibration
5.Automatically heating/cooling control for test oil
6.Can test B-osch, D-enso, D-elphi, S-iemens injectors
7.Fuel injector drivers are with short-circuit protection ground protection, and over voltage protection
8.Real-time display the curve of the injected fuel volume and returned fuel volume
9.Can test different kinds of solenoid valve injectors and piezo injectors
10.Test items: preheating emptying; tightness; full load; fuel return; discharge volume; pre-injection volume; idle oil volume
11.Can test pump chamber pressure and the positive/negative pressure of the oil supply
12.Function debugging can be realized under different speed conditions
13.Data backup, software update and cloud upgradable functions
14.Many language interfaces can be switched

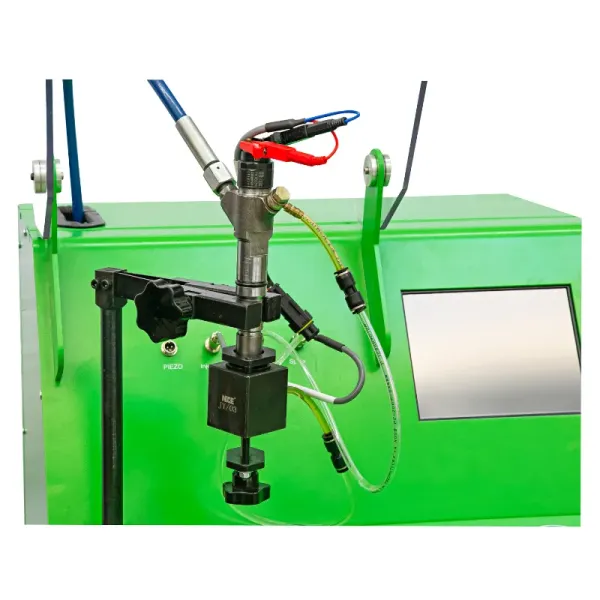

Product Details
Technical Parameters
| Technical Parameters |
| Output |
2.6KW |
| Power |
220V 50/60HZ |
| Speed |
0~1000 RPM |
| Rail Pressure |
0~1800 Bar |
| Rail Pressure Precision |
±5 Bar |
| Tank Volume |
8 L |
| Fuel Temperature |
40±2ºC |
| Filter Precision |
< 5μm |
| Gross Weight |
120 kg |
| Packing Size |
840×700×860 mm |
| Speed Control Model |
Converter Control |
| Temperature Control System |
Air Conditioning Heat Dissipation |
| Nozzle Sensor |
Imported Original Elliptical Type Flow Sensor |
| Language |
English, Spanish, Russian,etc |
| Material |
Metal Plate |
| Painting |
Powder Painting, Durable |
| Color |
Green (can be customized) |
| Logo |
Jing Zheng Hong Ye (can be customized) |
| MOQ |
1 Piece |
| Payment |
40% Deposit, the rest paid before shipment |
| Warranty Time |
12 months |
| Delivery time |
30 days after prepaid |
| Shipping Packing |
Wooden Case |
Testing Scope

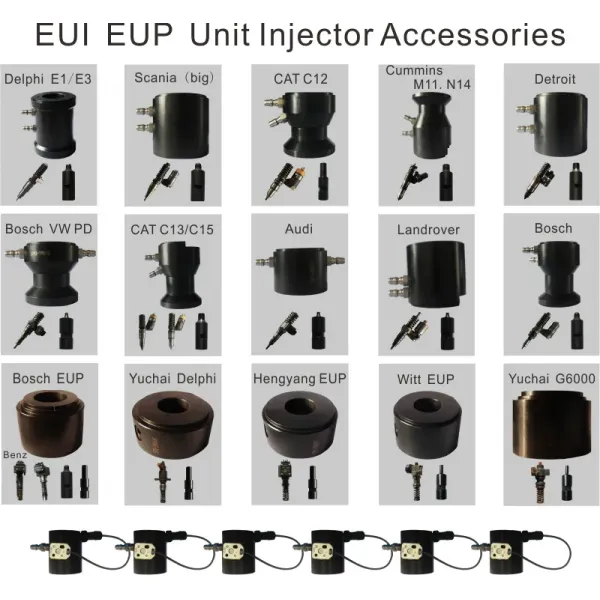

Related Products and Fixtures
Packing and Delivery
Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of B-osch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
