Product Introduction

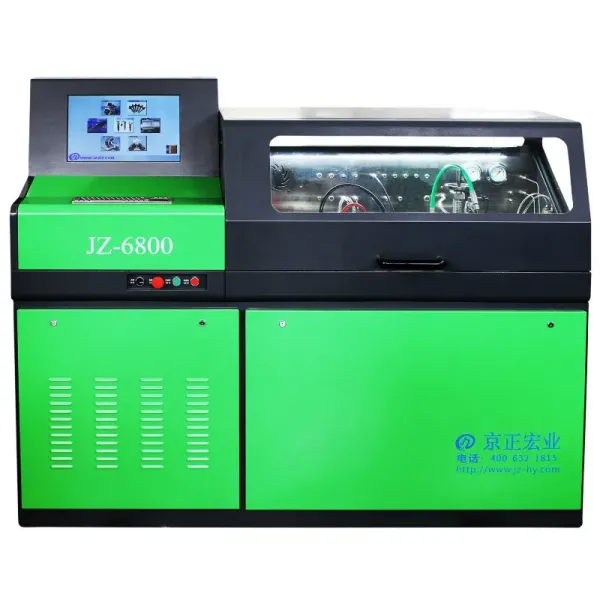

JZ-6800 multi-function test bench adopts full automatic control, which can conveniently repair and test common rail injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including B-osch, D-elphi, D-enso, S-iemens, C-aterpillar and so on. T he experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
| 1. Integrated flow sensor |
13. Can test piezo injectors |
| 2. Full-automatic Fully function |
14. Can test common rail injectors |
| 3. With electronic measuring system |
15. Can test mid-pressure injectors |
| 4. Prepositioned precise filter for sensor |
16. Can test common rail pumps |
| 5. Intelligent algorithm Automatic calibration |
17. Can test actuatedpumps |
| 6. Real-time display the fuel delivery graph |
18. Can test unit injectors & pumps |
| 7. Many language interfaces can be switched |
19. Can test S-iemens DCP pumps |
| 8. Automatically heating/cooling control for test oil |
20. Can test D-elphi CRSP pumps |
| 9. Data backup, software update and cloud upgradable |
21. Can test B-osch CP1/CP2/CP3 pumps |
| 10. B-osch CP3 pump and high pressure oil rail with DRV |
22. Can test D-ENSO HP3/HP4,HP0 pumps |
| 11. B-osch datas are from the orginal equipment of EPS708 |
23. Oil level lower limit alarm |
| 12. D-enso, D-elphi, S-iemens data are calibrated from the latest injectors |
24. Linear calibration of flow sensor |

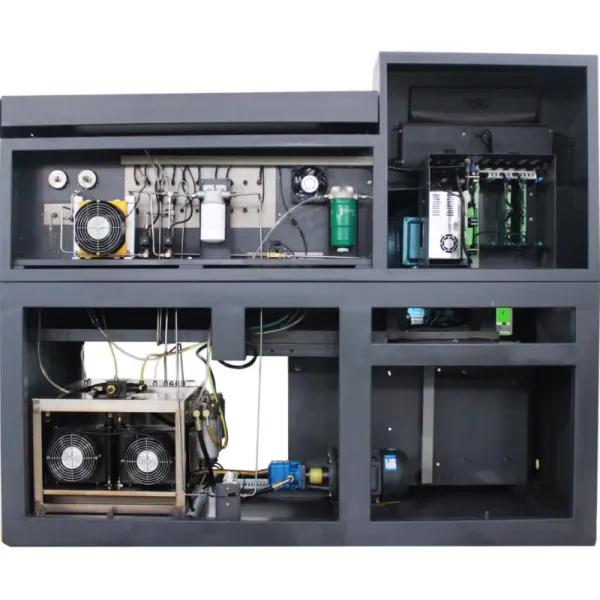

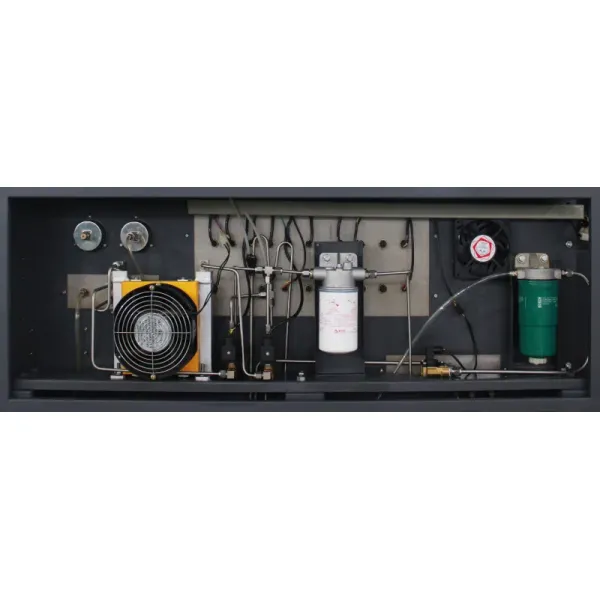

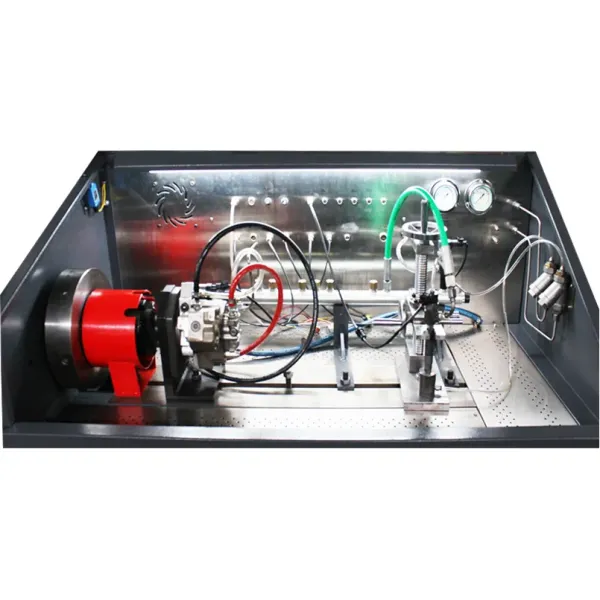

Product Details
Technical Parameters
| Technical Parameters |
| Output |
11 KW |
| Power |
3-Phase 4-Wire 380V 50/60HZ |
| Speed |
0~4000 RPM |
| Rail Pressure |
0~2200 Bar |
| Rail Pressure Precision |
±5 Bar |
| Tank Volume |
30 L |
| Fuel Temperature |
40±2ºC |
| Filter Precision |
< 5μm |
| Net Weight |
615 kg |
| Packing Size |
2065×1000×1770 mm |
| Speed Control Model |
Converter Control |
| Temperature Control System |
Air-Cooled Heat Dissipation |
| Nozzle Sensor |
Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor |
Imported Original Vane Type Flow Sensor |
| Language |
English, Spanish, Russian,etc |
| Material |
Metal Plate |
| Painting |
Powder Painting, Durable |
| Color |
Green (can be customized) |
| Logo |
Jing Zheng Hong Ye (can be customized) |
| MOQ |
1 Piece |
| Payment |
40% Deposit, the rest paid before shipment |
| Warranty Time |
12 months |
| Delivery time |
30 days after prepaid |
| Shipping Packing |
Wooden Case |

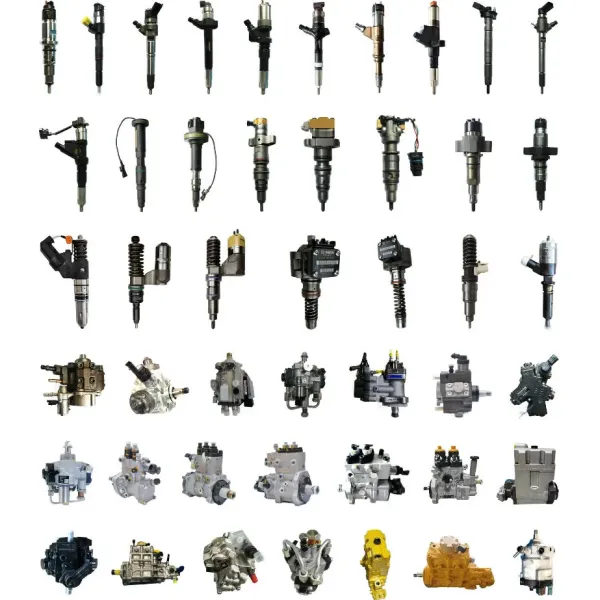

Testing Scope

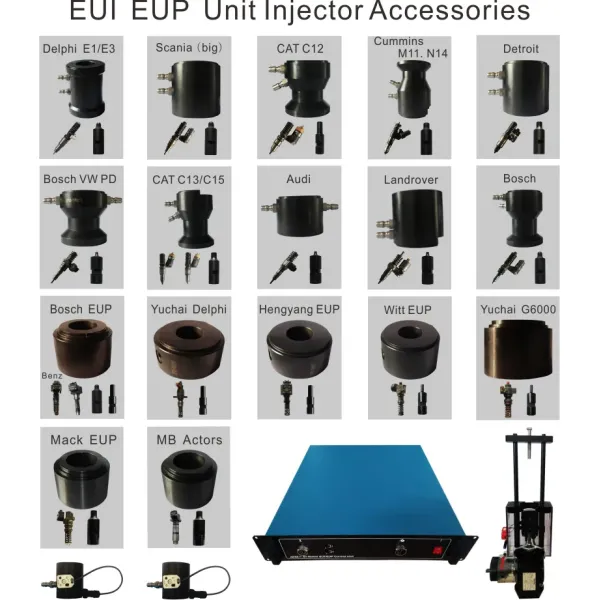

Related Products and Fixtures
Packing and Delivery

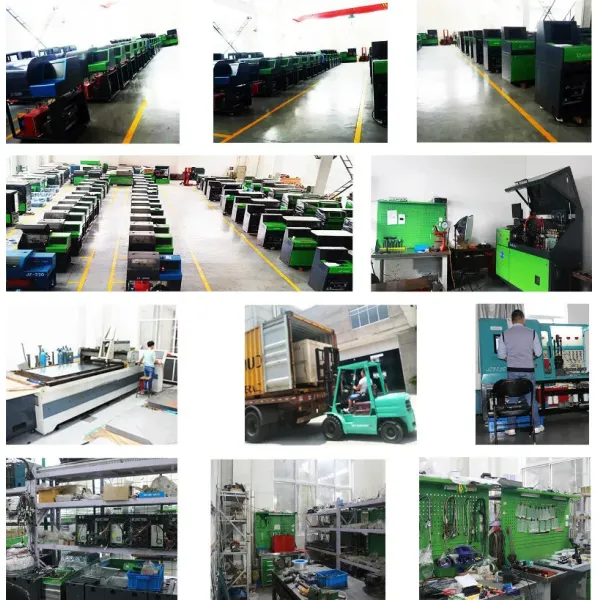

Our Company
